Watkiss Morgana BookMaster Pro Booklet Maker
Watkiss Morgana BookMaster Pro Booklet Maker
Description

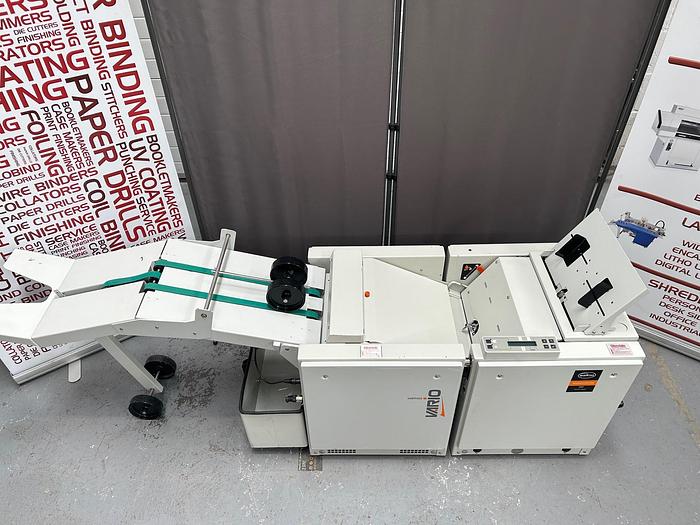

Now in stock at Glendale we have this Morgana Watkiss BookMaster Pro booklet maker with trimmer. This booklet making system is in perfect working condition. This BookMaster Pro been refurbished by a Morgana trained engineer. It includes a new staple head and clincher, several replacement belts and the trimmer blade sharpened, also included are all user manuals.
The BookMaster Pro booklet maker and trimmer is a fully automatic system with simple push button operation to adjust the side lays, end jog and staple/fold position. Standard sheet sizes are pre- programmed and custom sizes can be saved to memory for later use.
The BookMaster Pro booklet maker and trimmer combine maximum performance with cost effectiveness. The simplicity of operation stands this booklet maker offers stands out, making it one of the most advanced, user friendly and reliable staple-fold booklet makers available.
The BookMaster has a unique low impact stapling mechanism that ensures virtually maintenance free operation. The main wearing parts are included in the staple cartridge and are replaced every 5,000 cycles when the cartridge is changed. The low impact stapling mechanism with moving clinches produces flat, well-formed staples to the booklets. Capacity of up 22 sheets or 88 page booklets can be produced at speeds up to 2500 per hour. Booklets from A3 to A6 can be produced with ease.
The TrimMaster trimmer has a single self-sharpening hardened steel blade to neatly trim the fore-edge of the book. All trimmings are transported outside the machine to an external waste box allowing continuous operation.
Specifications
Manufacturer | Morgana |
Model | Watkiss BookMaster Pro |
Condition | Refurbished |
Min sheet size | 210mm x 140mm |
Max sheet size | 482mm x 320mm |
Max book thickness | 22 sheets (80gsm) |
Speed | Up to 2500 per hour |
Operation | Automatic set up via keypad |
Stapling system | Low impact with moving clinches |
Staple capacity | 5000 |
Operation modes | Stitch, fold, stitch & fold, edge stitch, edge stitch & fold. |
Electrical requirements | 220/240v 50/60Hz |
Machine weight | 210kg |
Dimensions | L 2060mm (with delivery unit) x W 550mm x H 800mm |
