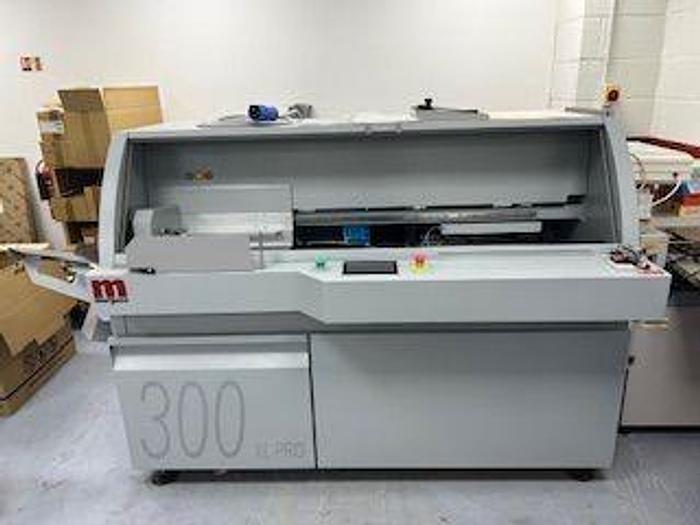

Morgana DigiBook 300XL Pro PUR Binder
![Used Morgana DigiBook 300XL Pro PUR Binder](https://i.machineryhost.com/339a18def9898dd60a634b2ad8fbbd58/64be66eee0ec92d9e83781de090e3bd3/original-used-morgana-digi-book-300-xl-pro-pur-binder.jpg)
Morgana DigiBook 300XL Pro PUR Binder
Description
Now in stock at Glendale we have this Morgana DigiBook 300XL Pro PUR binder. This binder ins in immaculate condition and has a bind count of just 3800 books. Supplied with air compressor.
PUR is the strongest, most flexible binding adhesive available and offers several additional advantages over other binding methods. When inks, coatings or digital print toners are present in the spine area these can compromise the strength of typical hotmelt perfect binding. PUR is resistant to this and will form a super-strong bond with all weights and finishes of paper stocks. In addition PUR works well with synthetic and recycled-content stock.
The DigiBook 300 is ideally suited to litho and digital printers who require short to medium runs of PUR perfect bound books to a professional standard. This innovative machine is equipped with a patented closed gluing system where the spine and side gluing is applied by a slot applicator for the utmost binding quality and accuracy.

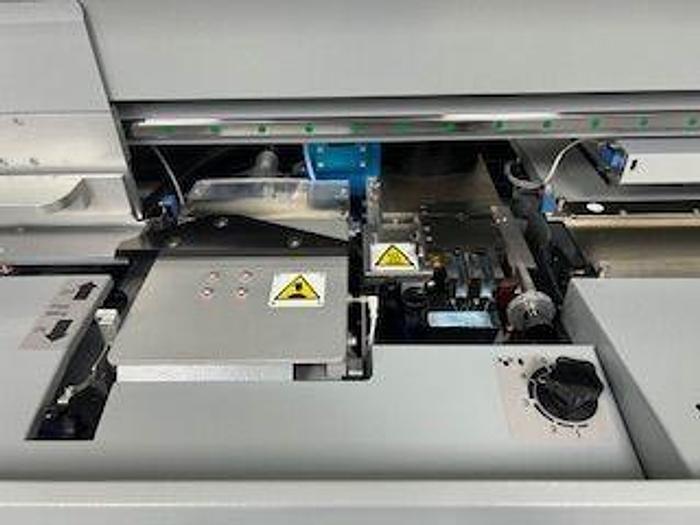

The PUR glue is applied on the book spine and on the sides by independent glue slots, each of which can be adjusted to give the best possible spine and side glue results. The quantity is determined by the height of the applicator and the pressure applied, thus allowing any kind of book to be bound with maximum ease. The nipping press is a pneumatic system with adjustable lateral pressing force. Pressing time is also adjustable from the panel with a range from 0 to 30 seconds. The press height varies from 0 to 1.5 mm for optimal squaring of the spine and quality of glue application.
Key product features:
• 300 books per hour

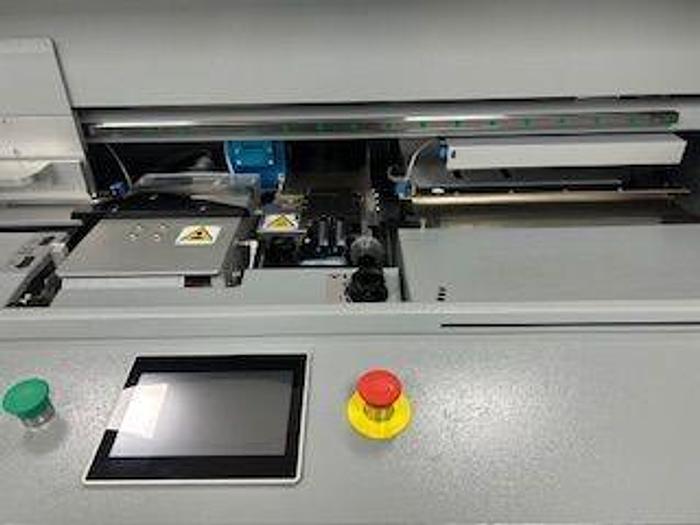

• Touch screen operation complete with automatic format change.
• Pneumatic opening and closing of clamp
• Binding length (spine) from 100mm up to 450mm
• Spine thickness from 2 to 50 mm
• Spine preparation by sophisticated milling device
• Automatic cleaning and sealing of the glue head
• Retractable milling
• Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off
• Unique angled work surface
Specifications
Manufacturer | Morgana |
Model | DigiBook 300XL Pro |
Year | 2019 |
Condition | Used |
Book thickness | 2-50mm |
Book length | 100-450mm |
Book height | 120-450mm |
Cover size min. | 240x100mm |
Cover size max. | 1000x450mm |
Speed | up to 300 books per hour |
Control panel | Touchscreen |
Electrical requirements | 20amp single phase |
Machine weight | 525kg |
Machine dimensions | (L)2470mm x (W)1270mm x (H)1660mm |
