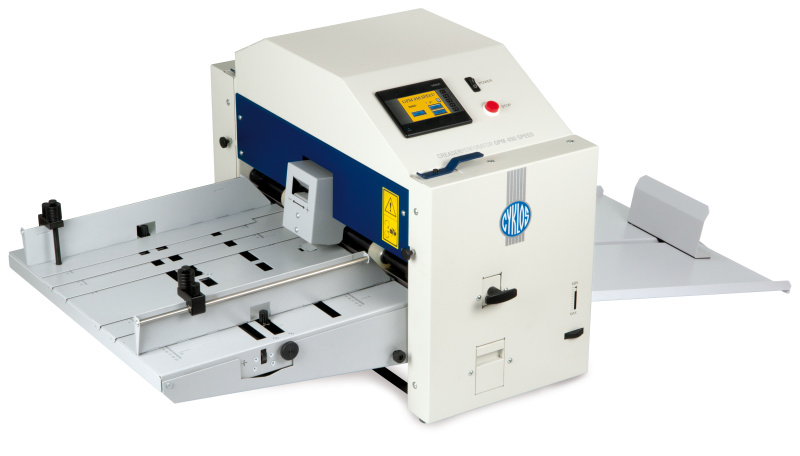

Cyklos GPM 450 Speed. Creasing And Perforating Machine
Cyklos GPM 450 Speed. Creasing And Perforating Machine
orCall 01915674410
Description
Our most important device is the creasing, perforating and punching machine GPM 450 SPEED following on from the successful GPM 450 SA, the SPEED version provides a unique auto friction feed system enabling faster and higher output of creased and perforated sheets. We keep on developing more punching options, at the moment we dispose of wire punching tool 4×4 mm, 3:1 and 2:1, and the same punch with semi-circle hole in the middle designed for calendar punching. Latest accessory launched in January 2016 is Euro Punch tool.
Reliable friction feeding with speed up to 2500 A4 sheets/A4
Large work table and working width suitable for A2 paper formats
Touch screen display for easy setting of distance and number of creases
Possibility of programme storage
Two widths of fine creasing channels
Easily exchangeable creasing, perforating and punching tools
Hgh-quality anvil perforation
Angle-adjustable paper stops on feeding table
Adjustable feed pressure
Telescopic feed table
Batching
OPTIONAL TOOLS: Punching tool – square 4×4 mm, 2:1, Punching tool – square 5×5 mm, 2:1, Punching tool – square 4×4 mm, 3:1, Punching tool – square 4×4 mm, 3:1, calendar punch, Punching tool – round, dia 4 mm, 3:1, Punching tool – round, dia 4 mm, 3:1, calendar punch, Euro Punch tool, Microperforating tool
Specifications
Manufacturer | Cyklos |
Model | GPM 450 |
Condition | New |
Working width | 95 – 450 mm |
Grammage | 80 – 400 g/m2 (creasing, punching), 80 – 250 g/m2 (perforating) |
Width of crease | CITO 1,0 mm – paper grammage 80 – 200 g/m2, iron channel – paper grammage 200 – 400 g/m2 |
Min./max. distance between creases | 1/ 1000 mm |
Input capacity | 50 mm |
Speed | 2500 sheets A4/ h (1 crease per A4) |
Dimensions | 1250 x 675 x 520 mm |
Packing size | 1 pallet – 1200 x 800 x 720 mm |
Weight | nett 121 kg, gross 157 kg (including mobile table) |
Voltage / frequency | 230 V/ 50Hz, 110 V/ 60 Hz |
Content of packing | 2 x creasing tool, 1 x perforating tool, mobile table |
