Description

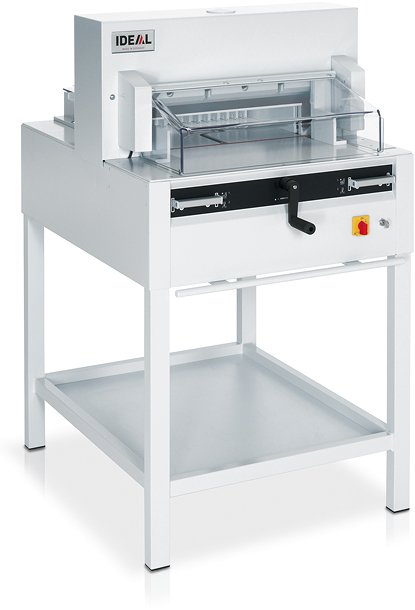

The IDEAL 4850 offers both electro-mechanical drive of the cutting blade and automatic clamping in a simple to operate guillotine that comes on its own table. LED lights produce a highly visible cutting line while hand positioning of the back gauge is controlled through a precision scale and spindle drive. IDEAL’s Safety Cutting System is employed to ensure absolute reliability in cutting. Side lays make sure that even the smallest piles are positioned exactly for cutting. The IDEAL 4850-95 covers a range from 475mm cutting length to 30mm and with a maximum 80mm cutting height.

Specifications

ManufacturerIDEAL
Model4850
ConditionNew
Cutting length475 mm
Cutting height80 mm
Narrow cut30 mm
Table depth458 mm
Power supply (other voltages available)230 Volt / 50 Hz / 1~ (other voltages available)
Motor performance (input capacity)1,42 kW
DimensionsH 1296 x W 762 x D 1053 mm
Dimensions with side tablesH 1296 x W 1349 x D 1053 mm
Weight225 kg
Weight with side tables234 kg
