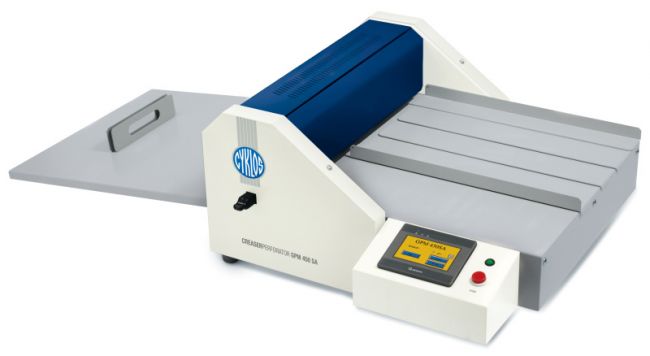

Cyklos GPM 450 SA Creasing & Perforating Machine
Cyklos GPM 450 SA Creasing & Perforating Machine
orCall 01915674410
Description
Creasing – Perforating Machine GPM 450 SA
The semiautomatic Cyklos GPM 450 SA Creasing & Perforating Machine with programmable control and working width 450 mm. Manual paper input, paper move provided by motor. Creasing enables high-quality fold of digitally printed paper. By turning the upper (complete) creasing bar behind the perforating one and after turning over the lower combined bar, it is possible to carry out perforation. Waste-free perforation facilitates detaching of paper.
Features of the Cyklos GPM 450 SA Creasing & Perforating Machine:
Heavy duty metal construction
Designed for both creasing and perforating
Useful also for creasing laminated documents
Up to 5 pre-set application can be stored in programme memory
High-quality “anvil” perforation
Automatic searching of pre-defined folds (1/2, 1/3, 1/4, book cover)
Touch display
Three sizes of creasing bars (2 x CITO technology, 1 x iron channel)
Large working desktop (up to A2 format)
8 languages (English, German, French, Spanish, Italian, Russian, Greek and Czech)
Enquire today with Glendale Presentation Solutions to obtain the state-of-the-art Cyklos GPM 450 SA Creasing & Perforating Machine.
Specifications
Manufacturer | Cyklos |
Model | GPM 450 Sa |
Condition | New |
Working width | 100 – 450 mm (min. length 95 mm) |
Grammage | 80 – 400 g/m2 (creasing), 80 – 250 g/m2(perforating) |
Width of crease | CITO 1,0 mm – paper thickness < 0,2 mm (recommended 80 – 150 gsm), CITO 1,4 mm – paper thickness 0,2 – 0,4 mm (recommended 160 – 250 gsm), iron channel – paper thickness 0,4 – 0,5 mm (recommended 250 – 400 gsm) |
Min./max. distance between creases | 2/ 1000 mm |
Predefined types of fold | 1/2, 1/3, 1/4, book cover |
Speed | 1500 sheets A4/h (1 crease per A4) |
Dimensions | 1200 x 640 x 300 mm |
Packing size | 700 x 740 x 400 mm |
Weight | nett 52,5 kg, gross 56 kg |
Voltage / frequency | 230 V/ 50Hz, 110 V / 60Hz |
