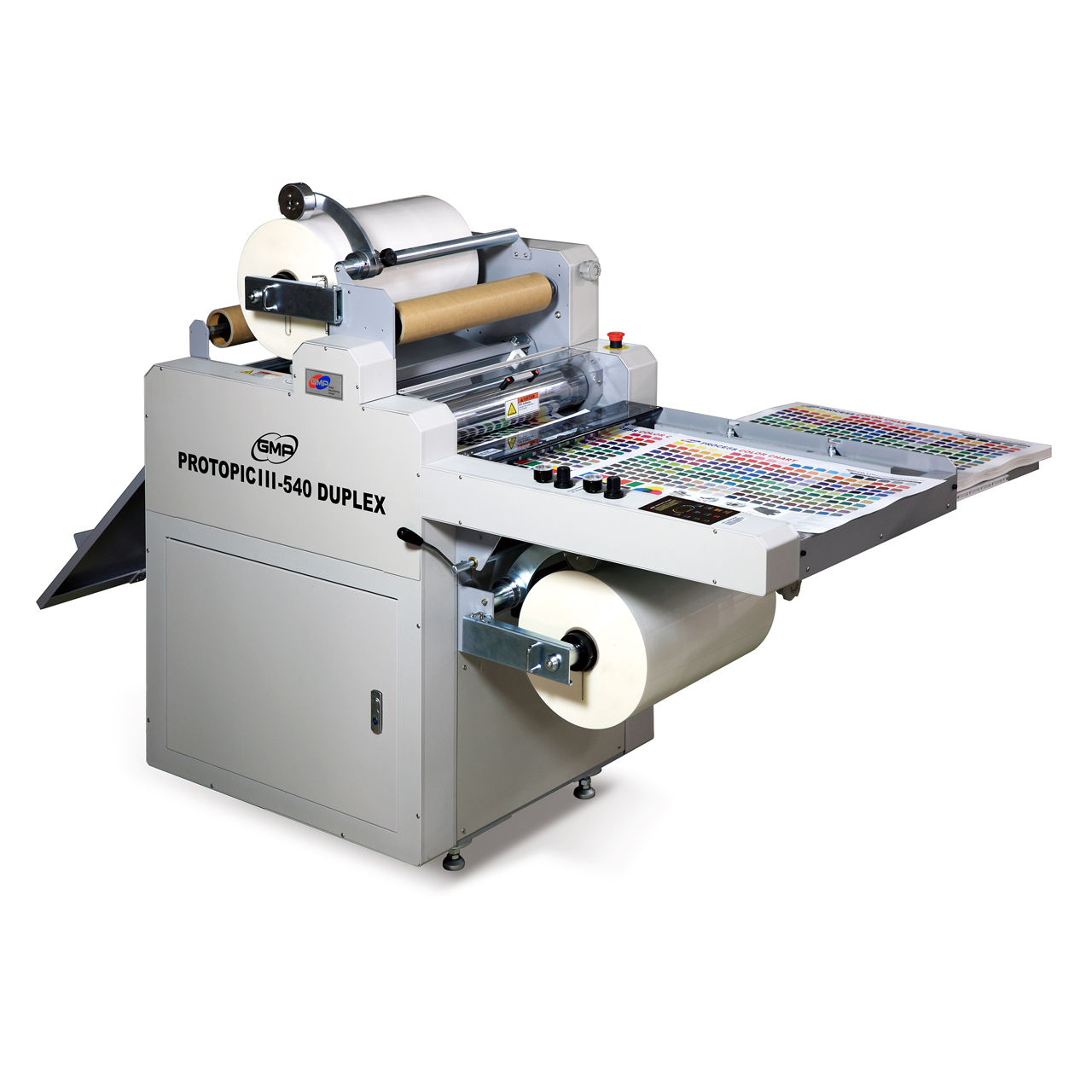

Protopic 540 Duplex
Protopic 540 Duplex
orCall 01915674410
Description
The Protopic series is designed to deliver quick and professional results every time. These robust machines are ideal for busy copy shops and print shops, providing exquisite lamination results without bubbling.
This durable collection of machines are easy to use, providing speedy results, simply. Perfect for print media specialists dealing with book covers, file covers, postcards and pamphlets. Perfect for embossing or laminating digital print media, this laminator is built to last.
FEATURES:
Superlative versatile laminator for duplex gloss lamination duplex photo matting, media slit lamination
Automatic paper feeding gap control system and automatic burst cutting system
Slide type paper loading table – easy to handle papers
Ergonomic capacitive touch screen (user friendly design)
One of 6 photo matting rollers included or customised pattern can be ordered
Air compressor and vacuum pump included
Air cooling system for perfect photo matting effect
Exchangeable/commonized PCB
APPLICATIONS:
Slit book lamination
Photo album & inner paper, photo matting lamination
Single side lamination
Duplex lamination
Silver halide replacement digital photo production
Digital media whole page Sleeking™ (gloss, matt and hologram)
Digital media spot Sleeking™ (gloss, matt, hologram and metallic)
PROTOPIC III-540 Net weight (kgs) 358
PROTOPIC III-540 Front roller diameter (mm): T: 100 / B: 80
PROTOPIC III-540 DUAL Net weight (kgs) 397
PROTOPIC III-540 DUAL PHOTO Net weight (kgs) 397
PROTOPIC III-540 DUPLEX Net weight (kgs) 450
Specifications
| Manufacturer | GMP |
| Model | Protopic 540 Duplex |
| Condition | New |
| Protopic iii-540 dimension (w*l*h, mm) | 800*1580*670 |
| Protopic iii-540 laminating speed (m/min.) | 15 |
| Protopic iii-540 max. paper size (w*l, mm) | 540*800 |
| Protopic iii-540 single side | POLYNEX,PERFEX, NYLONEX |
| Protopic iii-540 substrate weight | 120 ~ 350g/㎡ |
| Protopic iii-540 rear roller diameter (mm) | AC 220~240V/15A |
| Protopic iii-540 power consumption (kw) | 3.45 kw |
| Protopic iii-540 warm-up time (min) | 7 min |
| Protopic iii-540 heating system | Infrared heater |
| Protopic iii-540 laminating temp. (℃) | 135℃ Max. |
| Protopic iii-540 temp. control | Touch-screen |
| Protopic iii-540 speed control | Touch-screen |
| Protopic iii-540 display for temp. & speed | LCD Panel |
| Protopic iii-540 pressure control | Pneumatic cylinder |
| Protopic iii-540 film core | 77mm (3”) |
| Protopic iii-540 air compressor | 1 HP, 89L/min |
| Protopic iii-540 cooling device | Air blower |
| Protopic iii-540 net weight | 303kg |
| Protopic iii-540 dual dimension (w*l*h, mm) | 800*1770*670 |
| Protopic iii-540 dual laminating speed (m/min.) | 15 |
| Protopic iii-540 dual power consumption (kw) | 3.45 kw |
| Protopic iii-540 dual warm-up time (min) | 7 min |
| Protopic iii-540 dual air compressor | 1 HP, 89L/min |
| Protopic iii-540 dual cooling device | Air blower |
| Protopic iii-540 dual photo dimension (w*l*h, mm) | 800*1770*670 |
| Protopic iii-540 dual photo laminating speed (m/min.) | 15 |
| Protopic iii-540 dual photo power consumption (kw) | 3.45 kw |
| Protopic iii-540 dual photo warm-up time (min) | 7 min |
| Protopic iii-540 dual photo air compressor | 1 HP, 89L/min, 2 HP,116L/min(cooling) |
| Protopic iii-540 dual photo cooling device | Air cooling system |
| Protopic iii-540 duplex dimension (w*l*h, mm) | 800*1580*670 |
| Protopic iii-540 duplex laminating speed (m/min.) | 15(5) |
| Protopic iii-540 duplex power consumption (kw) | 5.6(3.45) kw |
| Protopic iii-540 duplex warm-up time (min) | 7 min |
| Protopic iii-540 duplex air compressor | 1 HP, 89L/min |
| Protopic iii-540 duplex cooling device | Air blower |
