GMP QTOPIC 380

GMP QTOPIC 380

orCall 01915674410

Description

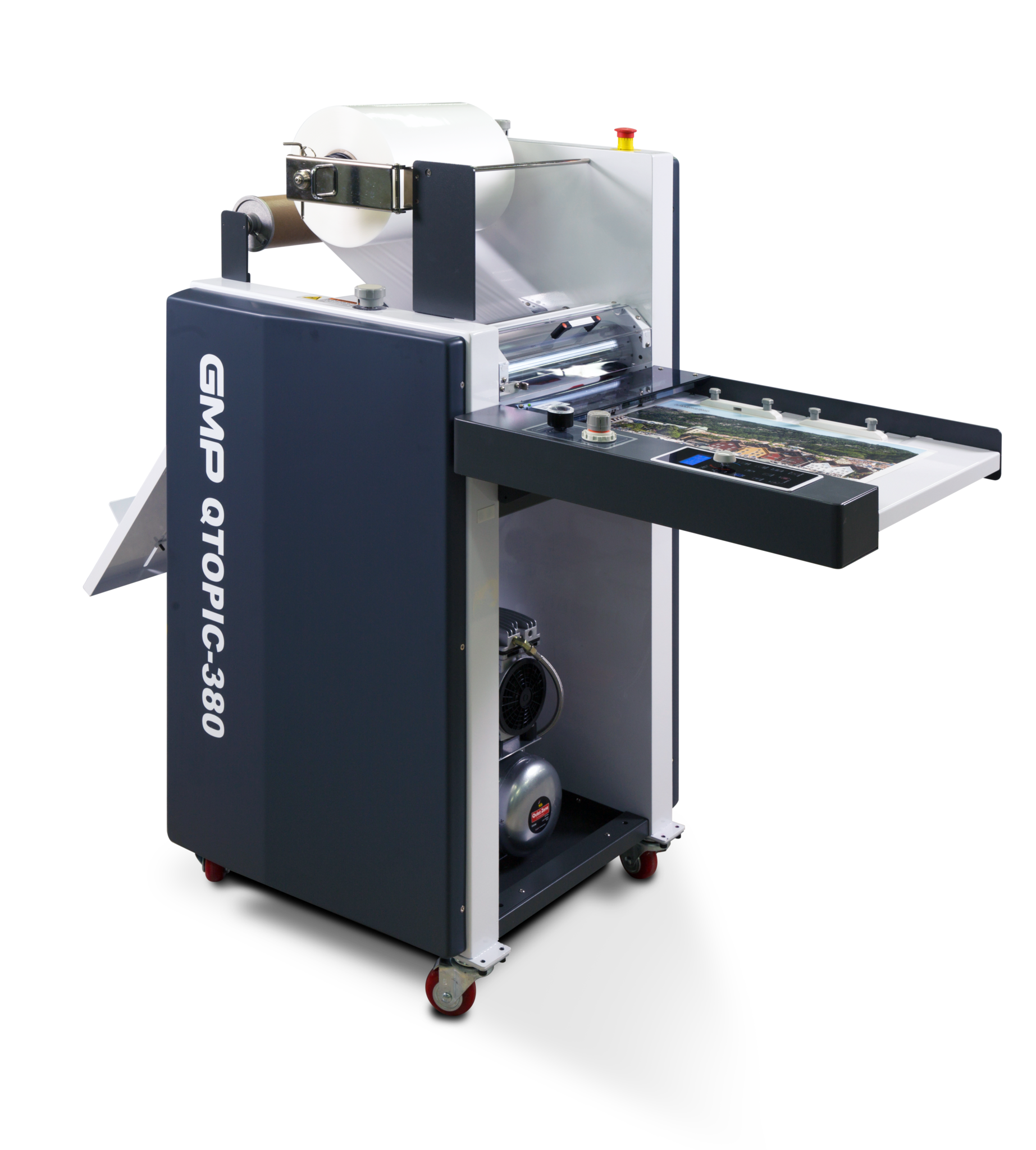

The GMP Q-Topic 380 POD Laminator is the very latest solution from World renowned Laminating Machine Manufacturer GMP. The GMP Q-TOPIC 380 is designed to offer an in-house laminating solution for Short-Run, on demand digital applications as well as the more traditional litho outputs. The Q-Topic also has the ability to Sleek/Foil direct from the box, the built in re-winder enables holographic images and foils to be applied to your sheet without any special skills or tools. SPECIAL FEATURES OF THE GMP Q-TOPIC 380: Using household power supply (220~240V) Environmentally-friendly Thermalami® system Perfect lamination for wide range of Lamination POLYNEX(BOPP base) film NYLONEX(NYLON base) film PERFEX(PET base) film Space-effective compact design for office, copy shop & photo shop Automatic paper feeding gap control system and automatic burst cutting system Film tension control device and decurling device are equipped Capacitive touch screen Sleeking solution & MICRONEX lamination with re-winder unit Gloss, Matt, Hologram, Metallic sleeking film MICRONEX(overlay coating) laminating film Air compressor included Paper size (W x L, mm): Max. 380 x 500mm (option: 1200mm), Min. 180 x 210mm Laminating films Single Side: POLYNEX (20~43mic), PERFEX(25mic), NYLONEX(27~44mic), MICRONEX (6~10mic) : Gloss, Matt, Hologram, Sleeking Gloss, Matt, Hologram, Metallic

Specifications

ManufacturerGMP
ModelQ-TOPIC 380
ConditionNew
Dimension (w x l x h, mm)720 x 1700 x 1350mm
Laminating speed1.5m/min ~ 10m/min
Substrate thickness120 ~ 350g/㎡
Front roller diameter tophigh glossy chrome ∅100
Bottomsilicon ∅80
Rear roller diametersilicon ∅55
Power requirementAC 220~240V, 50/60Hz, 12A
Power consumption2.8kw
Warm-up time5 min.
Heating systemINFRARED HEATER
Laminating tempMAX.150
Temp. control capacitiveTouch Screen
Speed control capacitiveTouch Screen
Display systemLCD Panel
Roller pressurePneumatic Cylinder
Film core size77mm (3”) / Dual – 58mm, 50mm
Air compressor1 HP, 89L/min
Temp. sensing methodThermo-couple inserted in the roller shell
Net weight187 kg
