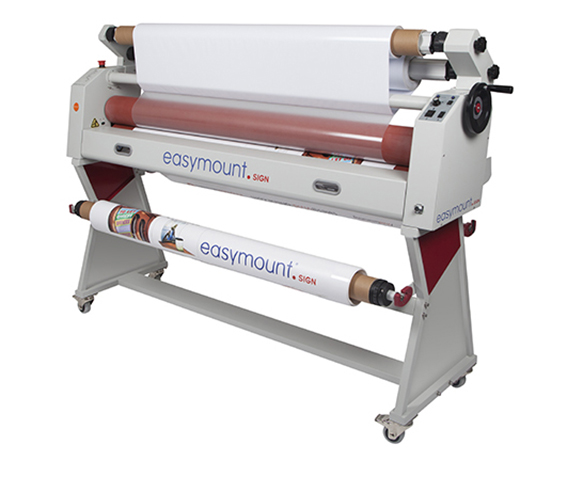

Easymount Sign 1600 Hot
Easymount Sign 1600 Hot
orCall 01915674410
Description
An easy-to-use laminating system with self gripping mandrels and a flip down feed tray.
The Easymount Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet.
Up to 5m/16ft a minute
25mm / 1″ mounting thickness
Variable speed control
Integral media take-up unit
Self gripping mandrels
Magic eye safety feature
Heated roller
Single lift mechanism
Heavy duty construction
Release liner take-up
Large rollers
Handy reverse mechanism
Foot pedal
Specifications
| Manufacturer | Vivid |
| Model | Sign 1600 |
| Condition | New |
| Laminating speed (m/min / feet/min) | 5 / 16 |
| Max. width (mm / inches) | 1620 / 64 |
| Mounting thickness (mm / inches) | 25 / 1 |
| Roller diameter (mm / inches) | 130 / 5 |
| Warm-up time (mins) | – |
| Hot roller heater system | – |
| Laminating temperature range (°c/°f) | 0-45 / 32-113 |
| Control panel | LED |
| Pressure adjustment | Manual |
| Film core (mm / inches) | 77 / 3 |
| Power supply ac (v, 50hz) | 220/240 |
| Power supply ac (v, 60hz) | 110 |
| Power supply required (amps) | – |
| Power consumption (w) | 1200 |
| Dimensions – width (mm / inches) | 2046 / 81 |
| Dimensions – depth x height (mm / inches) | 550 x 1365 / 22×54 |
| Gross machine weight (kg / lbs) | 156 / 344 |
