DS-85i
DS-85i
Description

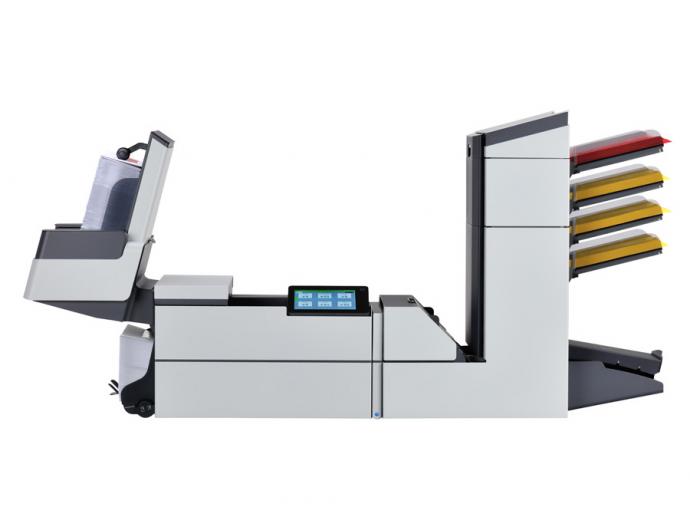

Your Mail Room Assistant Fold, insert and seal up to 60,000 envelopes per month The DS-85i folding and inserting machine is Ideally suited for businesses that need to automate a wide variety of document sizes and types. Modular in design, the DS-85i can be specified with up to six feed stations to process your most challenging combinations of document sizes and types. With the full-page Contact Image Sensor (CIS) scanning technology, the DS-85i can read any type of coding including optical mark, optical character, and 1D and 2D data matrix barcodes. Because the scanner reads the entire area of the page, codes can be printed anywhere on the document and read horizontally and vertically. With its large loading and unloading capabilities and many intelligent features to maintain operation, the DS-85i fits perfectly into busy mailrooms. Easy The 7” colour touch screen and wizard-based guidance simplify operation. Quickly recall up to 20 jobs stored in the machine memory, or create new ones with ease. Load documents and envelopes, press start, and the DS-85i automatically measures the materials and sets itself up. Productive Continuous operation is achieved by linking feeders. If one feeder runs empty, another one automatically takes over, allowing you to refill as needed until your job is complete. Automatically fold & insert up to 4,000 mail pieces per hour. Automated The high capacity vertical stacker reduces the frequency of unloading, freeing the operator to attend to other tasks. It requires less handling and makes it possible to complete up to 500 envelopes every 8 minutes while running at maximum speed. Versatile DS-85i can be configured with barcode reading technology to automate variable-page jobs, incorporating another layer of security that ensures the right documents are always sent to the right person
Specifications
Manufacturer | Neopost |
Model | DS-85i |
Condition | New |
Speed | Up to 4,000 / hour |
Load’n go automatic job set-up | Standard |
Flexfeed multi-format feeder | Standard |
Multiple sheet feeding | Standard |
Cascade feeding | Standard |
Number of feeders | Up to 6 |
Job memory | 20 |
Manual feeding | Standard |
Accumulate before folding | Standard |
Tip to tip sealing | Standard |
Document feeder capacity | up to 725 sheets 80 gsm |
Envelope feeder capacity | 325 envelopes |
Vertical envelope stacker | Up to 500 |
1d and 2d barcode reader | optional |
Document height | 90mm -356 mm |
Document width | 130mm -230 mm |
Document weight | 60-250 gsm |
Envelope length | 90-162 mm |
Envelope width | 160mm -248 mm |
Powerfold folding capacity | Up to 10 sheets |
Maximum set thickness | 2.5mm |
Fold types | Letter, z-fold, single, double parallel, no fold |
