Uchida AeroCut Nano

Uchida AeroCut Nano

orCall 01915674410

Description

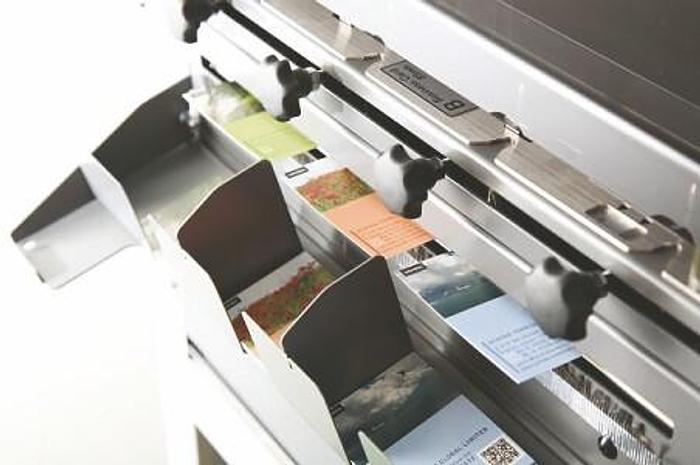

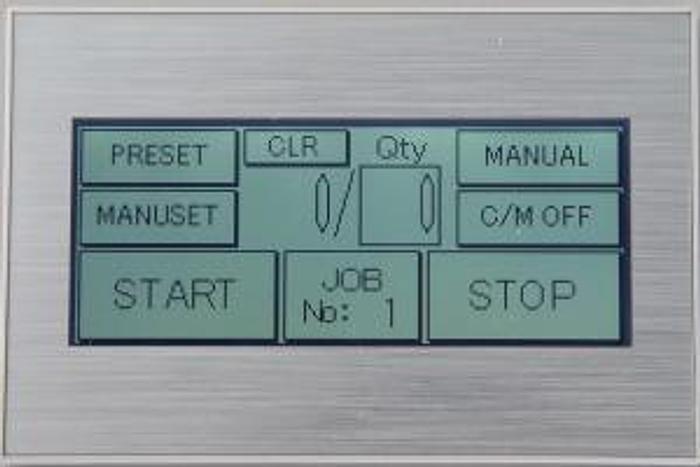

Uchida AeroCut nano is the revolutionary card cutter that can take up to SRA3, 350gsm stock. It feeds, slits and cross cuts to finish prints into business cards, post cards, flyers and so on. Japanese engineering and craftsmanship ensures perfect finishing every time. Uchida AeroCut Nano has 2 single slitter blades and 2 double slitter blades. These slitter blocks can be easily adjusted manually and fixed with a InstaSet bar – which is Uchida’s patented mechanism that you can intuitively snap on to the machine to change the job with keeping its extreme accuracy. These amazing InstaSet bar makes job change much easier and quicker. Business cards, post cards, A4, A5, A6… varieties of standard size cards can be finished in an instant. You can even order bespoke InstaSet bars for your special jobs. Thanks to its small footprint, the AeroCut nano fits to any workspace such as print shop, in-plant printing center, photo lab etc. The AeroCut nano runs quietly so you won’t be bothered. All the wastes are deflected to waste bin, so your workspace is always tidy. As AeroCut nano has a intuitive touch panel, it’s easy to change job program and store it. It indicates what you need to do in case of error, so you don’t have to struggle with manual and waste time in making experiments any more. Bespoke bar Build-to-order InstaSet bar. Up to 4 slitter unit slots on one side – positions can be customized

Specifications

ManufacturerUchida
ModelAeroCut Nano
ConditionNew
<html>basic functionsSlit, Cross cut
In-feed paper size210(W)x210(L) to 330(W)x488(L)mm
Minimum finished size85(W)x50(L)mm
Paper weight120 to 350gsm *Depending on paper quality
Speed126 business cards/min.
Feeding mechanismUpper belt air suction feed.
FeaturesQuick&easy tool free slitter position settings with *InstaSet bar, Skew adjustment, Cut-mark registration, Double feed detection, Detachable Machine table with waste bin, Intuitive touch screen operation, 16 preset jobs + 40 customized job memories
Dimensions565(W)x632(D)x963(H)mm
Footprint1190(W)x800(D)x1540(H)mm
Power source100-240VAC, 50/60Hz, single phase
Power consumption100W
Net weight70kgs (with machine table)
Instaset bar aSRA3/A3/A4 to 90mm width business cards
Instaset bar bSRA3/A3/A4 to 85mm width business cards
Instaset bar cSRA3 to A3/A4
Instaset bar dSRA3 to A5/A6
Instaset bar eA3 to A4/A5
Instaset bar fA3 to A6
